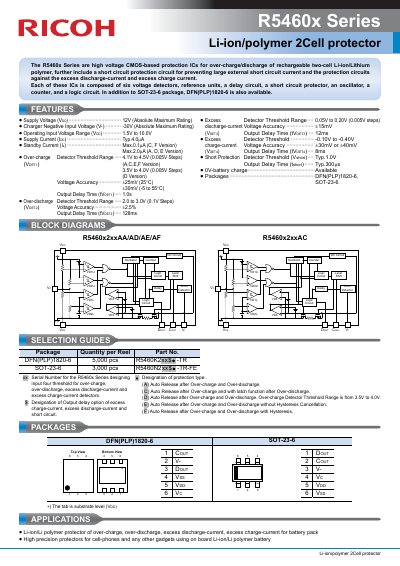

The R5460x Series are high voltage CMOS-based protection ICs for over-charge/discharge of rechargeable two-cell Li-ion/Lithium polymer. They include a short circuit protection circuit for preventing large external short circuit current and protection circuits against excess discharge-current and excess charge current. Each IC consists of six voltage detectors, reference units, a delay circuit, a short circuit protector, an oscillator, a counter, and a logic circuit. In addition to SOT-23-6 package, DFN(PLP)1820-6 package is also available.
The R5460x Series are high voltage CMOS-based protection integrated circuits designed to prevent over-charge, over-discharge, excess discharge current, and excess charge current in rechargeable two-cell Li-ion or lithium polymer battery packs. These ICs also include a short circuit protection circuit to prevent large external short circuit currents.
Each chip is composed of six voltage detectors, reference units, a delay circuit, a short circuit protector, an oscillator, a counter, and a logic circuit. The components are available in SOT-23-6 and DFN(PLP)1820-6 packages.
| Supply Voltage (Vo) | -30V to 12V |
|---|---|
| Supply Current (Ioo) | Typ.4.0uA Max.0.1 1A (C, F Version) |
| Standby Current (Is) | Max.2.0u/A |
| Over-charge Detector Threshold Range | 4.1V to 4.5V (0.005V Steps) |
| Over-discharge Detector Threshold Range | 2.0 to 3.0V (0.1V Steps) |
The absolute maximum rating for the supply voltage is 12V.
The maximum short circuit current is 0.11A for the C and F versions.
