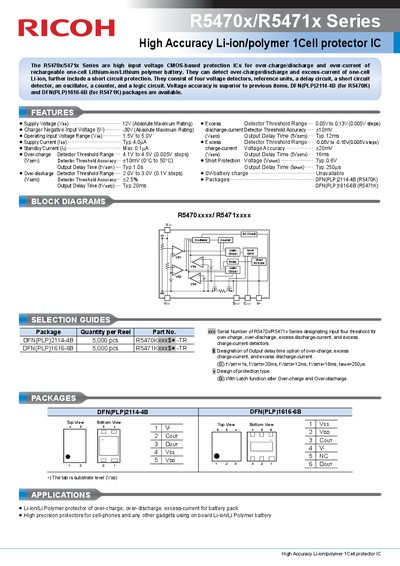

R5470x/R5471x series is a high input voltage CMOS-based protection IC for over-charge/discharge and over-current of rechargeable one-cell Lithium-ion/Lithium polymer battery. They can detect over-charge/discharge and excess-current of one-cell Li-ion, further include a short circuit protection. They consist of four voltage detectors, reference units, a delay circuit, a short circuit detector, an oscillator, a counter, and a logic circuit. Voltage accuracy is superior to previous items. DFN(PLP)2114-4B (for R5470K) and DFN(PLP)1616-6B (for R5471K) packages are available.
The R5470x/5471x Series are high input voltage CMOS-based protection integrated circuits designed for over-charge, over-discharge, and over-current protection of rechargeable one-cell Lithium-ion (Li-ion) and Lithium polymer (Li-polymer) batteries. These ICs include short circuit protection and consist of four voltage detectors, reference units, a delay circuit, a short circuit detector, an oscillator, a counter, and a logic circuit.
| Supply Voltage (Vov) | 12V (Absolute Maximum Rating) |
|---|---|
| Charger Negative Input Voltage (V-) | -30V (Absolute Maximum Rating) |
| Operating Input Voltage Range | 1.5V to 5.0V |
| Supply Current | Typ.4.0uA |
| Standby Current | Max.0.1pA |
| Over-charge Detector Threshold Range | 4.1V to 4.5V |
| Short Protection Voltage (Vshort) | Typ.0.6V |
These ICs are designed for rechargeable one-cell Lithium-ion (Li-ion) and Lithium polymer (Li-polymer) batteries.
The ICs provide over-charge, over-discharge, excess-current, and short circuit protection.
The available packages are DFN(PLP)2114-4B (for R5470K) and DFN(PLP)1616-6B (for R5471K).
