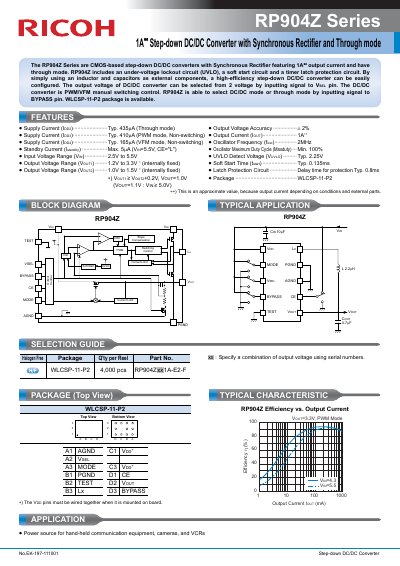

The RP904Z Series are CMOS-based step-down DC/DC converters with Synchronous Rectifier featuring 1A∗∗ output current and have through mode. RP904Z includes an under-voltage lockout circuit (UVLO), a soft start circuit and a timer latch protection circuit. By simply using an inductor and capacitors as external components, a high-efficiency step-down DC/DC converter can be easily configured. The output voltage of DC/DC converter can be selected from 2 voltage by inputting signal to VSEL pin. The DC/DC converter is PWM/VFM manual switching control. RP904Z is able to select DC/DC mode or through mode by inputting signal to BYPASS pin. WLCSP-11-P2 package is available.
The RP904Z Series are CMOS-based step-down DC/DC converters featuring a synchronous rectifier and 1A output current. The series includes an under-voltage lockout circuit (UVLO), a soft start circuit, and a timer latch protection circuit. By using simple external components like an inductor and capacitors, users can easily configure a high-efficiency converter.
| Output Current (Iout) | 1A |
|---|---|
| Supply Current (Through mode) | Typ. 435µA |
| Output Voltage Range (Vout1) | -1.2V to 3.3V |
| Output Voltage Range (Vout) | 1.0V to 1.5V |
| Input Voltage Range (Vin) | 5V to 5.5V |
| Package Type | WLCSP-11-P2 |
The RP904Z Series features an output current of 1A.
The input voltage range is 5V to 5.5V.
The typical supply current in through mode is 435A.
