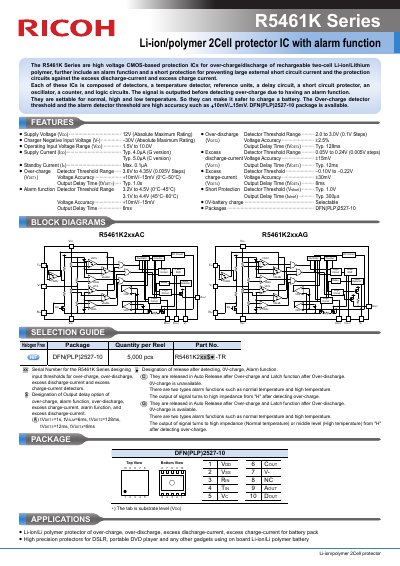

R5461K series Li-ion/polymer 2Cell protector IC with alarm function
The R5461K Series are high voltage CMOS-based protection integrated circuits designed specifically for rechargeable two-cell Li-ion or Lithium polymer battery packs. These devices provide comprehensive protection against over-charge, over-discharge, excess discharge current, and excess charge current. Additionally, the series includes an alarm function that outputs a signal before detecting over-charge to allow for early warning.
| Charger Negative Input Voltage | -30V (Absolute Maximum Rating) |
|---|---|
| Operating Input Voltage Range | 1.5V to 10.0V |
| Supply Current (G version) | Typ. 4.0uA |
| Standby Current | Max. 0.1uA |
| Package Type | DFN(PLP)2527-10 |
The series protects rechargeable two-cell Li-ion or Lithium polymer batteries.
The series includes protection for over-charge, over-discharge, excess discharge current, and excess charge current.
The typical output delay time (tVoers) for the over-discharge detector is 12ms.
