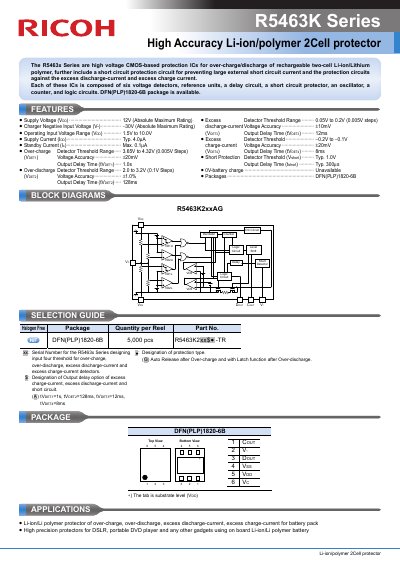

The R5463x series is a high-voltage CMOS-based protection IC for over-charge/discharge of rechargeable two-cell Li-ion/Lithium polymer, further include a short circuit protection circuit for preventing large external short circuit current and the protection circuits against the excess discharge-current and excess charge current. Each of these ICs is composed of six voltage detectors, reference units, a delay circuit, a short circuit protector, an oscillator, a counter, and logic circuits. DFN(PLP)1820-6B package is available.
The R5463K Series are high voltage CMOS-based protection ICs designed for over-charge, over-discharge, and short circuit protection of rechargeable two-cell Li-ion and Lithium polymer batteries. Each IC includes six voltage detectors, reference units, a delay circuit, a short circuit protector, an oscillator, a counter, and logic circuits.
| Supply Voltage (Von) | 12V (Absolute Maximum Rating) |
|---|---|
| Charger Negative Input Voltage (V-) | -30V (Absolute Maximum Rating) |
| Excess Detector Threshold Range | 0.05V to 0.2V (0.005V steps) |
| Operating Input Voltage Range | 1.5V to 10.0V |
| Over-charge Detector Threshold Range | 3.65V to 4.32V (0.005V Steps) |
| Over-discharge Detector Threshold Range | 2.0 to 3.2V (0.1V Steps) |
| Short Protection Detector Threshold | Typ. 1.0V |
| Package | DFN(PLP)1820-6B |
It is used as a protector for over-charge, over-discharge, excess discharge-current, and excess charge-current for Li-ion/Li-polymer battery packs.
It is suitable for high precision protectors in DSLRs, portable DVD players, and other gadgets using on-board Li-ion/Li-polymer batteries.
