CMOD2004 type is a high voltage silicon switching diode manufactured by the epitaxial planar process, epoxy molded in a ULTRAmini™ surface mount package, designed for applications requiring high voltage capability.
The CMOD2004 is a high‑voltage silicon switching diode offered in an ultra‑mini SOD‑523 surface‑mount package. It is fabricated by an epitaxial planar process and epoxy‑molded for robust operation in demanding applications.

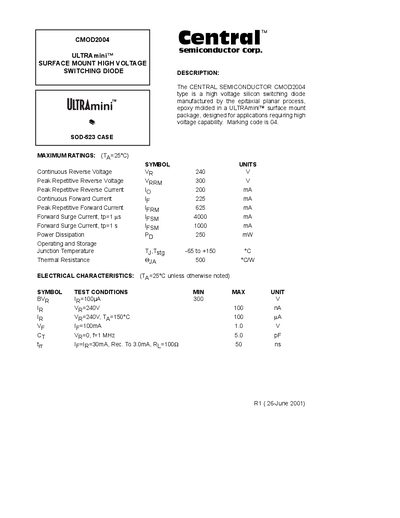

The document provides electrical characteristics, maximum ratings, mechanical dimensions, and package details, including the marking code (04) and lead layout for the SOD‑523 case.
| Maximum Repetitive Reverse Voltage (VRRM) | 300 V |
|---|---|
| Forward Current (IF) | 100 mA |
| Operating Temperature Range | -65 °C to +150 °C |
The marking code is 04.
It uses an SOD‑523 surface‑mount case.
The maximum repetitive reverse voltage is 300 V.
