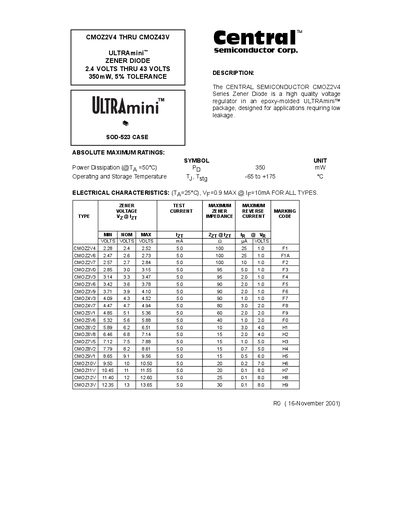

The CENTRAL SEMICONDUCTOR CMOZ2V4 Series Zener Diode is a high quality voltage regulator in an epoxy-molded ULTRAmini™ package, designed for applications requiring low leakage.
The CMOZ2V4‑CMOZ43V series from Central Semiconductor provides a range of UltraMini Zener diodes in a SOD‑523 epoxy‑molded package. These devices are intended for low‑leakage voltage regulation applications and are specified for 5 % tolerance and 350 mW power dissipation.
Key electrical characteristics include a voltage range from 2.4 V to 43 V, a Zener test current of 10 mA, and operating temperature limits from –65 °C to +175 °C. Mechanical data give the SOD‑523 case dimensions and lead configuration.
| Voltage range | 2.4 V – 43 V |
|---|---|
| Power dissipation | 350 mW |
| Operating temperature | -65 °C to +175 °C |
| Package type | SOD‑523 |
| Dimension A (length) | 0.020‑0.031 in (0.50‑0.80 mm) |
The series covers Zener voltages from 2.4 V up to 43 V.
Each diode can dissipate up to 350 mW.
They are supplied in a SOD‑523 surface‑mount package.
The devices operate from –65 °C to +175 °C.
