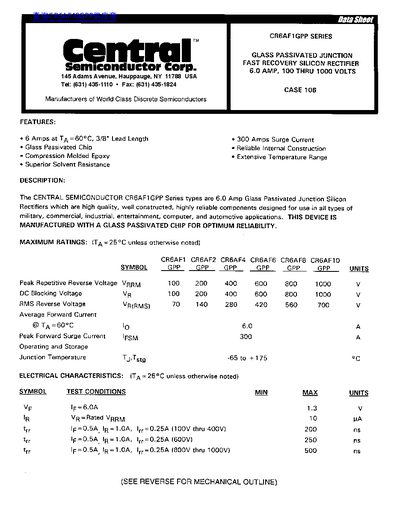

The CR6AF1GPP Series are glass‑passivated junction fast‑recovery silicon rectifiers rated for 6 A forward current and up to 1000 V reverse voltage. They feature a compression‑molded epoxy case, superior solvent resistance, and a wide temperature range for military, commercial, industrial, entertainment, computer, and automotive applications.
The datasheet lists electrical characteristics such as peak repetitive reverse voltage, average forward current, surge current, and junction temperature limits, as well as mechanical dimensions for the CASE 106 package.
| Peak Repetitive Reverse Voltage | 100 V – 1000 V (model dependent) |
|---|---|
| Average Forward Current | 6.0 A @ Ta = 60 °C |
| Peak Forward Surge Current | 300 A |
| Junction Temperature Range | -65 °C to +175 °C |
| Case Type | CASE 106 |
It varies from 100 V to 1000 V depending on the specific model.
The average forward current is 6 A at a junction temperature of 60 °C.
The device can handle a peak forward surge current of 300 A.
The junction temperature range is –65 °C to +175 °C.
