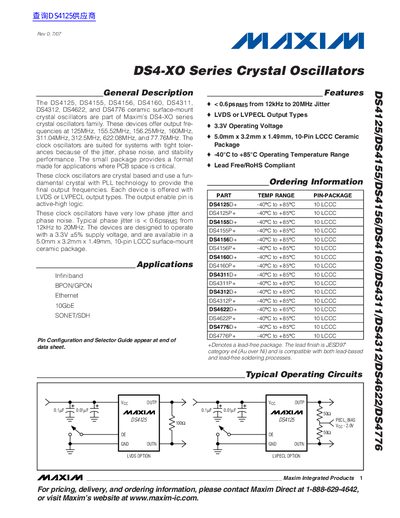

The DS4125/DS4155/DS4156/DS4160/DS4311/DS4312/DS4622/DS4776 DS4-XO Series Crystal Oscillators are ceramic surface-mount crystal oscillators that are part of Maxim's DS4-XO series crystal oscillators family. These devices offer output frequencies at 125MHz, 155.52MHz, 156.25MHz, 160MHz, 311.04MHz, 312.5MHz, 622.08MHz, and 77.76MHz. The clock oscillators are suited for systems with tight tolerances because of the jitter, phase noise, and stability performance. The small package provides a format made for applications where PCB space is critical.
The DS4125, DS4155, DS4156, DS4160, DS4311, DS4312, DS4622, and DS4776 ceramic surface-mount crystal oscillators are part of Maxim's DS4-XO series. These devices offer specific output frequencies ranging from 77.76MHz to 622.08MHz and are suited for systems with tight tolerances regarding jitter, phase noise, and stability. Each device is offered with LVDS or LVPECL output types and operates with a 3.3V supply voltage.
| Operating Voltage | 3.135V to 3.465V |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 10-Pin LCCC Ceramic |
| Package Dimensions | 5.0mm x 3.2mm x 1.49mm |
| Typical Phase Jitter | < 0.6ps RMS |
| Output Types | LVDS or LVPECL |
The devices offer output frequencies at 125MHz, 155.52MHz, 156.25MHz, 160MHz, 311.04MHz, 312.5MHz, 622.08MHz, and 77.76MHz.
The oscillator startup time is 50ms.
Yes, the devices are lead-free and RoHS compliant.
