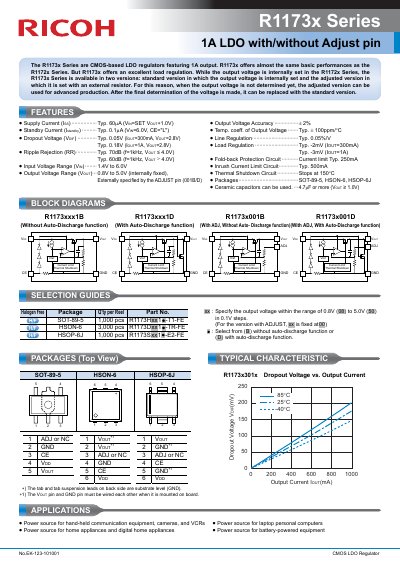

The R1173x Series is a CMOS-based LDO regulator featuring 1A output. It offers almost the same basic performances as the R1172x Series, but with excellent load regulation.
The R1173x Series are CMOS-based LDO regulators featuring a 1A output. This series offers excellent load regulation and is available in two versions: a standard version with an internally set output voltage and an adjusted version where the voltage is set with an external resistor. The adjusted version is useful for advanced production when the final output voltage is not yet determined.
| Ripple Rejection (RR) | Typ. 70dB at 1kHz |
|---|---|
| Input Voltage Range (Vin) | 1.4V to 6.0V |
| Output Voltage Range (Vout) | 0.8V to 5.0V |
| Current Limit | Typ. 250mA |
The typical supply current is 602A when the input voltage is set to the output voltage plus 1.0V.
The typical dropout voltage is 0.18V when the output current is 1A and the output voltage is 2.8V.
The input voltage range is from 1.4V to 6.0V.
