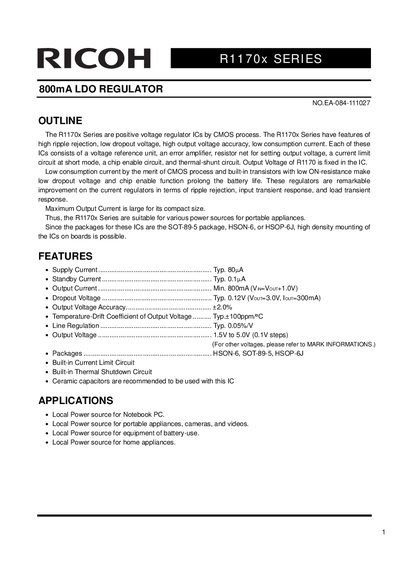

R1170x series 800mA low dropout voltage regulator ICs are manufactured using CMOS technology. The R1170x series features high ripple rejection, low dropout voltage, high output voltage accuracy, low consumption current.
The Ricoh R1170x Series are positive voltage regulator ICs manufactured using a CMOS process. These devices offer features such as high ripple rejection, low dropout voltage, high output voltage accuracy, and low consumption current. The series includes built-in current limit circuits at short mode, chip enable circuits, and thermal-shunt circuits to ensure reliable operation.
| Standby Current (Typ) | 0.1 uA |
|---|---|
| Output Voltage Accuracy | +/- 2.0% |
| Operating Temperature Range | -40 to 85 C |
The series is available in HSON-6, SOT-89-5, and HSOP-6J packages.
Ceramic capacitors are recommended to be used with this IC.
