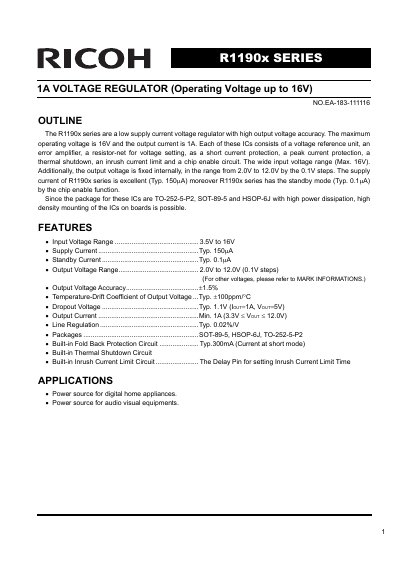

The R1190x series is a low supply current voltage regulator with high output voltage accuracy. The maximum operating voltage is 16V and the output current is 1A. Each of these ICs consists of a voltage reference unit, an error amplifier, a resistor-net for voltage setting, as a short current protection, a peak current protection, a thermal shutdown, an inrush current limit and a chip enable circuit. The wide input voltage range (Max. 16V). Additionally, the output voltage is fixed internally, in the range from 2.0V to 12.0V by the 0.1V steps. The supply current of R1190x series is excellent (Typ. 150μA) moreover R1190x series has the standby mode (Typ. 0.1μA) by the chip enable function. Since the package for these ICs are TO-252-5-P2, SOT-89-5 and HSOP-6J with high power dissipation, high density mounting of the ICs on boards is possible.
The Ricoh R1190x series are low supply current voltage regulators with high output voltage accuracy, designed to operate with a maximum input voltage of 16V. The series supports an output current of up to 1A and offers fixed internal output voltages ranging from 2.0V to 12.0V in 0.1V steps.
Key features include built-in protections such as short circuit, peak current, thermal shutdown, and inrush current limiting. The ICs are available in SOT-89-5, HSOP-6J, and TO-252-5-P2 packages to facilitate high-density mounting on printed circuit boards.
| Input Voltage Range | 3.5V to 16V |
|---|---|
| Output Voltage Range | 2.0V to 12.0V (0.1V steps) |
| Temperature-Drift Coefficient | Typ. +100ppm/°C |
| Dropout Voltage (Typ.) | 1.1V @ Iour=1A, Vout=5V |
| Output Current Min. | 1A |
| Line Regulation (Typ.) | 0.02%/V |
| Short Current Limit (Typ.) | 300mA |
The R1190x series is available in SOT-89-5, HSOP-6J, and TO-252-5-P2 packages.
The maximum operating voltage for this series is 16V.
Yes, it includes a built-in thermal shutdown circuit that operates when the junction temperature exceeds 150°C.
