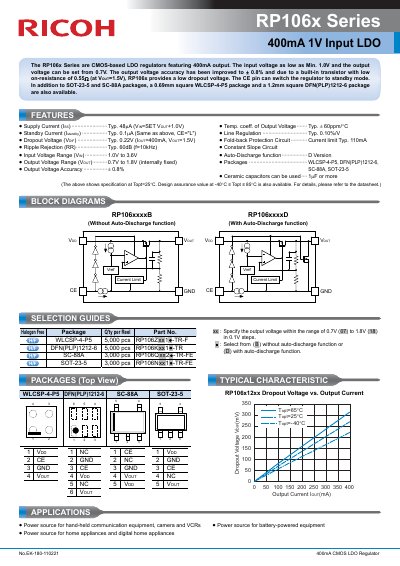

This product is EK-180-110221 400mA CMOS LDO Regulator, with an input voltage range of 1.0V-3.6V, an output voltage range of 0.7V-1.8V, an output voltage accuracy of ±0.8%, a standby current of 0.1μA, a dropout voltage of 0.22V, and a working temperature range of -40℃-85℃.
The RP106x Series are CMOS-based LDO regulators featuring a 400mA output current. The input voltage can be as low as 1.0V, and the output voltage is adjustable from 0.7V. The series offers improved output voltage accuracy of +0.8% and utilizes a built-in transistor with low on-resistance to provide a low dropout voltage. A CE pin allows the regulator to switch to standby mode.
| Output Current | 400mA |
|---|---|
| Input Voltage Range | 1.0V to 3.6V |
| Output Voltage Range | 0.7V to 1.8V |
| Output Voltage Accuracy | +0.8% |
| Standby Current | Typ. 0.1nA |
| Ripple Rejection | Typ. 60dB |
| Current Limit | Typ. 110mA |
The input voltage can be as low as 1.0V.
The RP106x Series features a 400mA output.
Available packages include SOT-23-5, SC-88A, WLCSP-4-P5, and DFN(PLP)1212-6.
