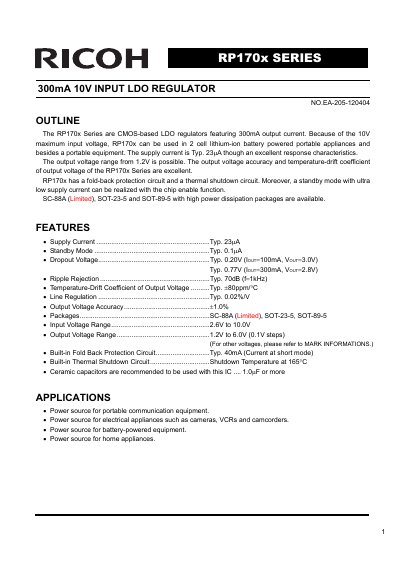

The RP170x Series are CMOS-based LDO regulators featuring 300mA output current. Because of the 10V maximum input voltage, RP170x can be used in 2 cell lithium-ion battery powered portable appliances and besides a portable equipment. The supply current is Typ. 23μA though an excellent response characteristics. The output voltage range from 1.2V is possible. The output voltage accuracy and temperature-drift coefficient of output voltage of the RP170x Series are excellent. RP170x has a fold-back protection circuit and a thermal shutdown circuit. Moreover, a standby mode with ultra low supply current can be realized with the chip enable function. SC-88A (Limited), SOT-23-5 and SOT-89-5 with high power dissipation packages are available.
The Ricoh RP170x Series are CMOS-based LDO regulators featuring a 300mA output current and a maximum input voltage of 10V. These devices are designed for use in 2-cell lithium-ion battery powered portable appliances and other portable equipment. The series offers an output voltage range from 1.2V to 6.0V in 0.1V steps, with excellent output voltage accuracy and a low temperature-drift coefficient of 80ppm/°C.
| Output Current | 300mA |
|---|---|
| Input Voltage Range | 10V maximum |
| Output Voltage Range | 1.2V to 6.0V |
| Supply Current (Typical) | 23µA |
| Dropout Voltage (Typical) | 0.500V |
| Ripple Rejection | 70dB |
| Short Current Limit | 40mA |
| Thermal Shutdown Temperature | 165°C |
| Operating Temperature Range | -40 to 85°C |
| Recommended Output Capacitor | 1.0µF or more |
The maximum input voltage is 10V.
The series is available in SC-88A, SOT-23-5, and SOT-89-5 packages.
Yes, it includes a fold-back protection circuit and a thermal shutdown circuit.
