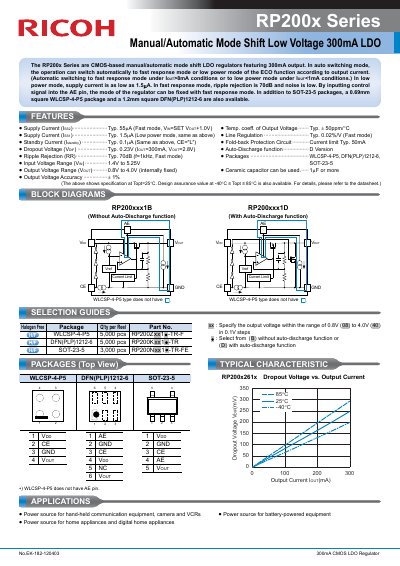

The RP200x Series are CMOS-based manual/automatic mode shift LDO regulators featuring 300mA output. In auto switching mode, the operation can switch automatically to fast response mode or low power mode of the ECO function according to output current. (Automatic switching to fast response mode under IOUT>8mA conditions or to low power mode under IOUT<1mA conditions.) In low power mode, supply current is as low as 1.5μA. In fast response mode, ripple rejection is 70dB and noise is low. By inputting control signal into the AE pin, the mode of the regulator can be fixed with fast response mode. In addition to SOT-23-5 packages, a 0.69mm square WLCSP-4-P5 package and a 1.2mm square DFN(PLP)1212-6 are also available.
The RP200x Series are CMOS-based regulators featuring a 300mA output. They include an ECO function that allows automatic switching between fast response mode and low power mode based on the system load, or can be fixed to fast response mode via the AE pin control signal.
Available in SOT-23-5, WLCSP-4-P5, and DFN(PLP)1212-6 packages, these regulators operate with an input voltage range of 1.4V to 5.25V and provide fixed output voltages between 0.8V and 4.0V.
| Output Current | 300mA |
|---|---|
| Supply Current (Low Power) | Typ. 1.5µA |
| Ripple Rejection | Typ. 70dB |
| Input Voltage Range | 1.4V to 5.25V |
| Output Voltage Range | 0.8V to 4.0V |
The regulator automatically switches between fast response mode and low power mode depending on the system load.
Yes, by inputting a control signal into the AE pin to fix the regulator in fast response mode.
