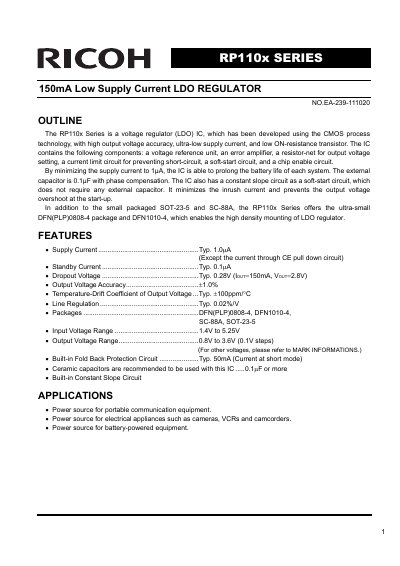

The RP110x Series is a voltage regulator (LDO) IC, which has been developed using the CMOS process technology, with high output voltage accuracy, ultra-low supply current, and low ON-resistance transistor. The IC contains the following components: a voltage reference unit, an error amplifier, a resistor-net for output voltage setting, a current limit circuit for preventing short-circuit, a soft-start circuit, and a chip enable circuit. By minimizing the supply current to 1µA, the IC is able to prolong the battery life of each system. The external capacitor is 0.1µF with phase compensation. The IC also has a constant slope circuit as a soft-start circuit, which does not require any external capacitor. It minimizes the inrush current and prevents the output voltage overshoot at the start-up. In addition to the small packaged SOT-23-5 and SC-88A, the RP110x Series offers the ultra-small DFN(PLP)0808-4 package and DFN1010-4, which enables the high density mounting of LDO regulator.
The RICOH RP110x Series is a voltage regulator (LDO) IC developed using CMOS process technology. It features high output voltage accuracy, ultra-low supply current (typical 1.00µA), and low ON-resistance. The series includes a voltage reference unit, error amplifier, current limit circuit, soft-start circuit, and chip enable circuit.
| Dropout Voltage | Typ. 0.28V |
|---|---|
| Temperature-Drift Coefficient | Typ. +100ppm/°C |
| Line Regulation | Typ. 0.02%/V |
| Short Current Limit | Typ. 500mA |
| Operating Temperature Range | -40 to 85 °C |
The series offers DFN(PLP)0808-4, DFN1010-4, SC-88A, and SOT-23-5 packages.
Ceramic capacitors of 0.1µF or more are recommended for use with this IC.
