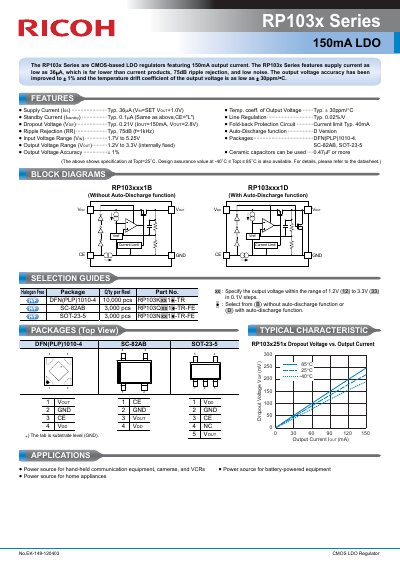

The RP103x Series are CMOS-based LDO regulators featuring 150mA output current. The RP103x Series features supply current as low as 36μA, which is far lower than current products, 75dB ripple rejection, and low noise. The output voltage accuracy has been improved to ± 1% and the temperature drift coefficient of the output voltage is as low as ± 30ppm/°C.
The RP103x Series are CMOS-based Low Dropout (LDO) regulators designed to provide up to 150mA of output current. Key features include a typical standby current as low as 36nA, 75dB of ripple rejection at 1kHz, and an improved output voltage accuracy of ±1%. The device also offers a low temperature drift coefficient for the output voltage of +30ppm/°C.
| Output Current | 150mA |
|---|---|
| Output Voltage Accuracy | +/- 1% |
| Temperature Drift Coefficient | +30ppm/°C |
| Input Voltage Range | 1.7V to 5.25V |
Ricoh recommends the RP109x Series as a succeeding product.
The series is available in DFN(PLP)1010-4, SC-82AB, and SOT-23-5 packages.
