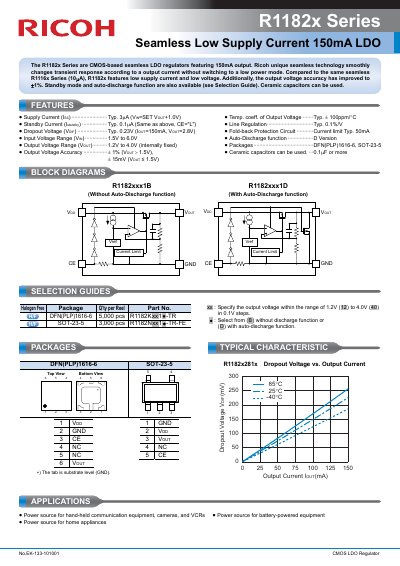

The R1182x Series are CMOS-based seamless LDO regulators featuring 150mA output. Ricoh unique seamless technology smoothly changes transient response according to a output current without switching to a low power mode. Compared to the same seamless R1116x Series (10μA), R1182x features low supply current and low voltage. Additionally, the output voltage accuracy has improved to ±1%. Standby mode and auto-discharge function are also available (see Selection Guide). Ceramic capacitors can be used.
The R1182x Series are CMOS-based seamless Low Dropout (LDO) regulators that provide a maximum output current of 150mA. These devices utilize Ricoh's unique seamless technology to smoothly change transient response according to the output current without switching to a low power mode, distinguishing them from similar series like the R1116x.
| Supply Current (Iss) | Typ. 3A |
|---|---|
| Standby Current (Istanapy) | Typ. 0.1nA |
| Dropout Voltage (Voir) | Typ. 0.23V |
| Input Voltage Range (Vin) | 1.5V to 6.0V |
| Output Voltage Range (Vout) | 2.2V to 4.0V |
| Output Current | 150mA |
The regulator features a seamless low supply current capability of 150mA.
The typical dropout voltage is 0.23V when the output current is 150mA and the output voltage is 2.8V.
The device accepts an input voltage range from 1.5V to 6.0V.
