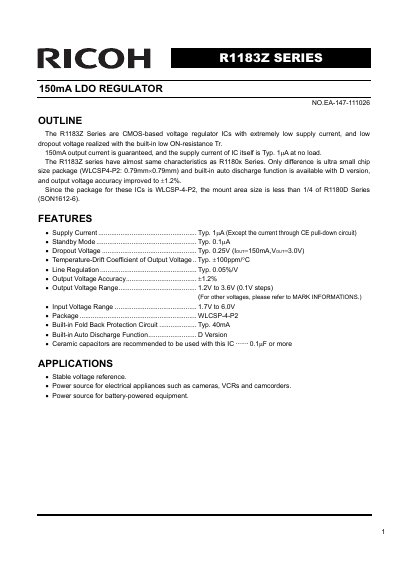

The R1183Z Series are CMOS-based voltage regulator ICs with extremely low supply current, and low dropout voltage realized with the built-in low ON-resistance Tr. 150mA output current is guaranteed, and the supply current of IC itself is Typ. 1μA at no load. The R1183Z series have almost same characteristics as R1180x Series. Only difference is ultra small chip size package (WLCSP4-P2: 0.79mm×0.79mm) and built-in auto discharge function is available with D version, and output voltage accuracy improved to ±1.2%.
The Ricoh R1183Z Series are CMOS-based voltage regulator ICs featuring extremely low supply current and low dropout voltage. These devices utilize a built-in low ON-resistance transistor to achieve high efficiency, with an output current of 150mA guaranteed and a typical no-load supply current of 1µA.
| Output Current | 150 mA |
|---|---|
| Supply Current (Typ) | 1 µA |
| Dropout Voltage (Typ) | 0.25V |
| Output Voltage Accuracy | +/-1.2% |
| Operating Temperature Range | -40 to +85 °C |
| Package Type | WLCSP-4-P2 |
The datasheet guarantees an output current of 150mA.
The supply current of the IC itself is typically 1A at no load.
Ceramic capacitors of 0.1uF or more are recommended for use with this IC.
