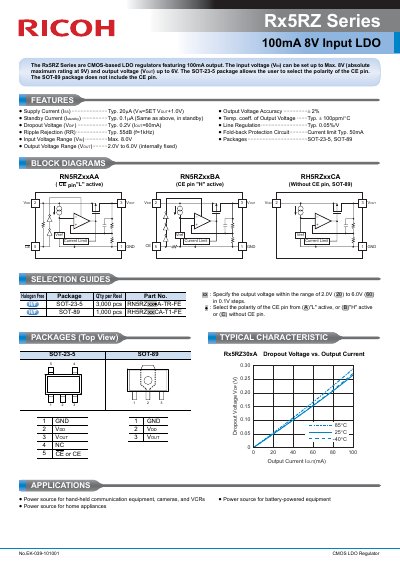

The Rx5RZ Series is a CMOS-based LDO regulator with a 100mA output. The input voltage (VIN) can be set up to a maximum of 8V (absolute maximum rating at 9V), and the output voltage (VOUT) can go up to 6V. The SOT-23-5 package allows the user to select the polarity of the CE pin. The SOT-89 package does not include the CE pin.
The Ricoh Rx5RZ Series are CMOS-based Low Dropout (LDO) regulators designed to provide a stable 100mA output current. The series supports input voltages up to a maximum of 8V and output voltages ranging from 2.0V to 6.0V. It is available in SOT-23-5 and SOT-89 packages, with the SOT-23-5 version offering selectable CE pin polarity.
| Output Current | 100mA |
|---|---|
| Input Voltage Range | Max. 8.0V |
| Output Voltage Range | 2.0V to 6.0V |
| Supply Current | Typ. 20uA |
| Output Voltage Accuracy | + 2% |
| Dropout Voltage | Typ. 0.2V |
| Ripple Rejection | Typ. 55dB |
| Current Limit | Typ. 50mA |
| Packages | SOT-23-5, SOT-89 |
The maximum input voltage is 8.0V, with an absolute maximum rating of 9V.
The output voltage range is fixed internally between 2.0V and 6.0V.
The series is available in SOT-23-5 and SOT-89 packages.
