This manual describes how to install and use AJA Io Express and Io HD, including steps on installation, configuration, and operation.

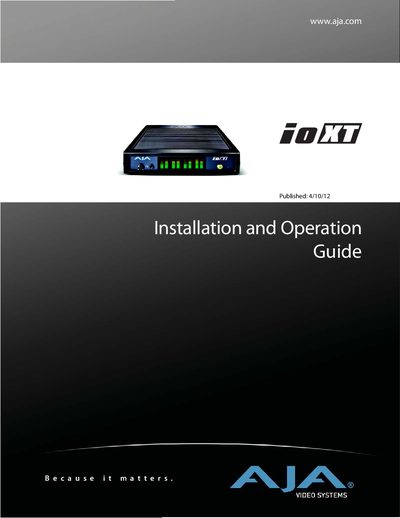

The AJA io XT is a professional-grade I/O device designed for high-end computers using a Thunderbolt interface. It provides 10Gbps bandwidth for video capture, playback, and conversion, supporting formats such as 10-bit uncompressed, Apple ProRes, and stereoscopic 3D workflows. The device features two Thunderbolt ports, allowing for pass-through or daisy-chaining, and connects via a single cable while providing a second port for storage.
| Interface | Thunderbolt |
|---|---|
| Inputs/Outputs | Two SD-SDI, HD-SDI, HSDL, and 3G HD-SDI inputs and outputs |
| HDMI Support | HDMI Input and Output |
| Audio Output | Eight channels analog audio output |
| Power | 12V DC, 4-pin XLR |
| Conversion | 10-bit hardware conversion |
The manual lists 'Shipping Box Contents' as a specific section, implying a detailed inventory is provided in the appendix.
You can contact them via telephone at 800.251.4224 or 530.274.2048, fax at 530.274.9442, or email [email protected].
AJA Video warrants the product to be free from defects in materials and workmanship for a period of three years from the date of purchase.
