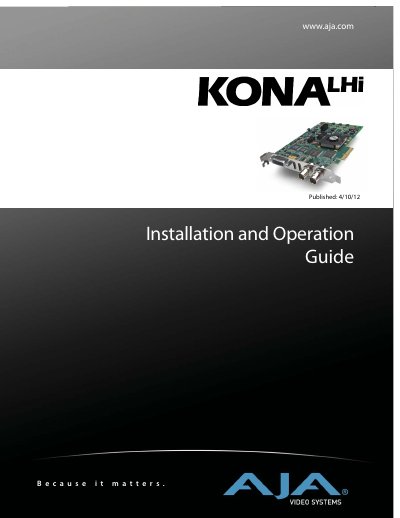

AJA KONA LHi Installation and Operation Guide

This document is an Installation and Operation Guide published by AJA Video, Inc. It describes the features and characteristics of their products.

Brand: AJA
Document type: User Manual
Language: English
Pages: 78
File format: PDF
File size: 2.2 MB
Published: 09 July, 2012
Updated: 28 September, 2023
MD5 checksum: 142FA72D3EBD834D03988E8F525C9ABF
PDF: AJA KONA LHi Installation and Operation Guide PDF

About this manual

The AJA KONA LHi is a high-quality 3G/HD/SD-SDI and analog video/audio interface designed for Apple Mac Pro or Windows workstations. It supports 8-bit and 10-bit uncompressed video, DVCPRO HD, HDV, and Apple RT Extreme with hardware acceleration. The device features HDMI v1.3a input/output, 12-bit analog component/composite/S-video I/O, and balanced AES/EBU audio inputs.

What's inside

Introduction
Features
Installation Overview
Cabling the System
Installing KONA LHi Software
Using The AJA Control Panel
Troubleshooting

Frequently asked questions

What is the warranty period for the KONA LHi?

The product is warranted to be free from defects in materials and workmanship for a period of three years from the date of purchase.

What audio sample rates does the KONA LHi support via XLR connections?

The device supports 24-bit audio at 48kHz or 96kHz through XLR connections.

What is the maximum bit depth for uncompressed video capture?

The card offers 10-bit uncompressed QuickTime capture.
