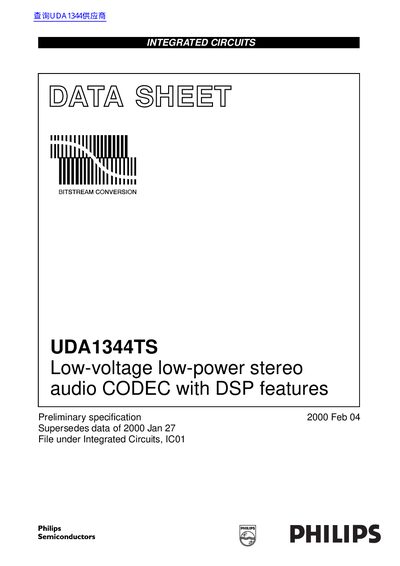

UDA1344TS is a low power stereo audio codec with DSP features
The Philips UDA1344TS is a single-chip stereo Analog-to-Digital Converter (ADC) and Digital-to-Analog Converter (DAC) employing bitstream conversion techniques. Designed for low-voltage and low-power portable digital audio equipment, it supports sampling frequencies from 8 to 55 kHz and is pin and function compatible with the UDA1340M.
The device features advanced audio configuration including stereo single-ended input and stereo line output. In L3 microcontroller interface mode, it offers Digital Sound Processing (DSP) features such as digital tone control, bass boost, treble, digital dB-linear volume control, and soft mute. It is available in a small SSOP28 package.
| Supply Voltage | 2.7 V to 3.6 V |
|---|---|
| Sampling Frequency Range | 8 to 55 kHz |
| ADC Input Voltage (RMS) | Up to 2 V |
| ADC Signal-to-Noise Ratio | 95 dB (A-weighted) |
| DAC Signal-to-Noise Ratio | 100 dB (A-weighted) |
| Power Consumption (Playback) | 42 mW |
| Package Type | SSOP28 |
The ADC supports input signals up to 2 V (RMS).
Yes, the UDA1344TS is pin and function compatible with the UDA1340M.
