The UDA1345TS is a low-power audio codec supporting sampling frequencies from 8 to 100 kHz. It features a non-inverting ADC and DAC, as well as digital dB-linear volume control, digital de-emphasis and soft mute for audio processing.

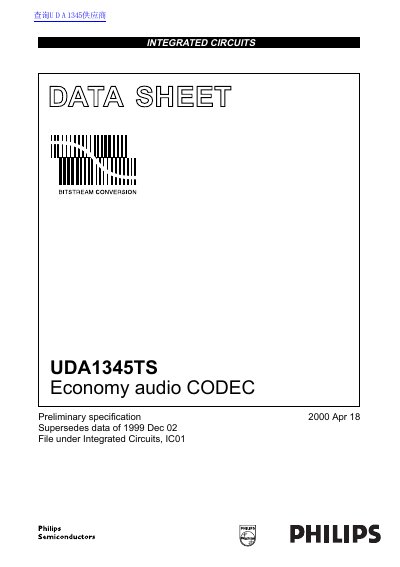

The Philips UDA1345TS is a single-chip stereo Analog-to-Digital Converter (ADC) and Digital-to-Analog Converter (DAC) employing bitstream conversion techniques. It is designed for use in low-voltage, low-power portable digital audio equipment that incorporates recording and playback functions.
The device supports multiple data formats including I2S-bus up to 24 bits, MSB-justified up to 20 bits, and LSB-justified serial formats of 16, 18, and 20 bits. It features a low power consumption with a supply voltage range of 2.4 V to 3.6 V (typical 3.0 V) and includes integrated digital interpolation filters and non-inverting DACs.
| Ambient Temperature Range | -40 to +85 °C |
|---|---|
| ADC Input Voltage (RMS) | Up to 2.0 V |
| ADC Channel Separation | Up to 100 dB |
| Package Type | SSOP28 |
The device operates with a power supply range of 2.4 V to 3.6 V, with a typical value of 3.0 V.
Yes, it supports the I2S-bus data format with word lengths of up to 24 bits.
The ADC can handle input signals up to 2 V (RMS) when current through the input pin is limited.
Yes, functions are controllable either by L3 microcontroller interface or via static pins.
