This document describes the features and characteristics of the 74F132 Quad 2-input NAND Schmitt trigger. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals, and has greater noise margin than conventional NAND gates.

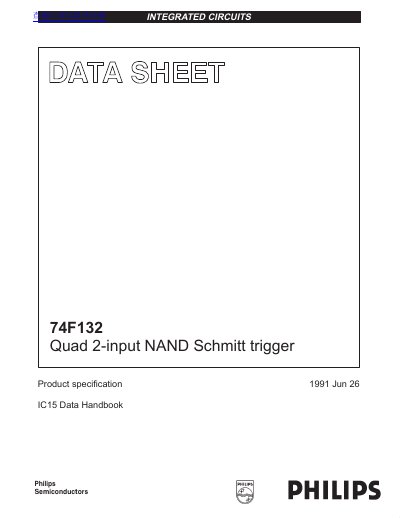

This document is a product specification datasheet for the Philips 74F132 integrated circuit. The device contains four 2-input NAND gates that accept standard TTL input signals and provide standard TTL output levels. It features internal Schmitt triggers to transform slowly changing input signals into sharply defined, jitter-free outputs with greater noise margin than conventional NAND gates.
| Number of Gates | Four 2-input NAND gates |
|---|---|
| Supply Voltage (Vcc) | 5.0 V typical |
| Operating Temperature Range | 0°C to +70°C |
It contains four 2-input NAND gates that accept standard TTL input signals and provide standard TTL output levels.
It transforms slowly changing input signals into sharply defined, jitter-free output signals with greater noise margin.
The hysteresis between positive-going and negative-going input thresholds is typically 800mV.
