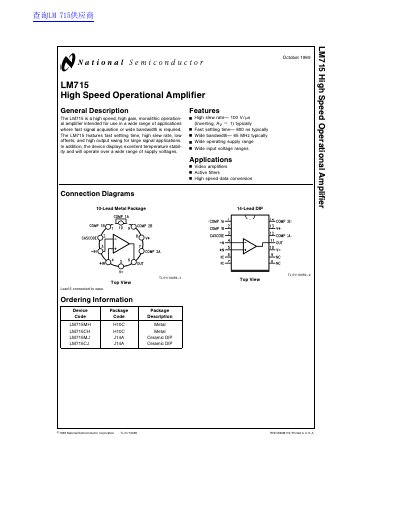

The LM715 is a high speed, high gain, monolithic operational amplifier designed for use in a wide range of applications where fast signal acquisition or wide bandwidth is required. The LM715 features fast settling time, high slew rate, low offsets, and high output swing for large signal applications. In addition, the device displays excellent temperature stability and will operate over a wide range of supply voltages.
The LM715 is a high speed, high gain, monolithic operational amplifier intended for use in applications requiring fast signal acquisition or wide bandwidth. Key features include a high slew rate of 100 V/µs, fast settling time of 800 ns, and a wide bandwidth of 65 MHz. The device offers excellent temperature stability and operates over a wide range of supply voltages.
| Slew Rate | 100 V/µs |
|---|---|
| Settling Time | 800 ns |
| Bandwidth | 65 MHz |
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Military) | -55°C to +125°C |
The LM715 is intended for use in video amplifiers, active filters, and high speed data conversion.
The absolute maximum supply voltage rating is ±18V.
The typical input offset voltage is 2.0 mV for the LM715M and 2.0 mV for the LM715C.
