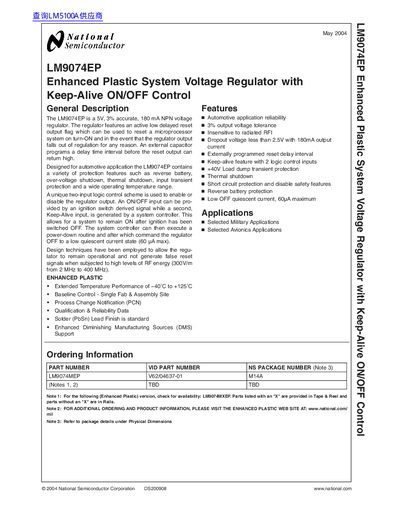

LM9074EP Enhanced Plastic System Voltage Regulator with Keep-Alive ON/OFF Control
The LM9074EP is an enhanced plastic system voltage regulator designed specifically for automotive applications. It provides a precise 5V output with features such as active low delayed reset, reverse battery protection, over-voltage shutdown, and thermal shutdown. The device includes a unique two-input logic control scheme allowing for keep-alive functionality to maintain power after ignition is switched off.
| Output Voltage | 5V (4.85 to 5.15 V) |
|---|---|
| Output Current | 180 mA max |
| Operating Temperature Range | -40°C to +125°C |
| Dropout Voltage | < 2.5V at 180 mA |
| Input Transient Protection | +40V Load dump |
The regulator supports a maximum output current of 180 mA.
Yes, it features a Keep-Alive input generated by a system controller to maintain power after ignition is switched off.
Yes, it is designed for automotive application and includes features like reverse battery protection and thermal shutdown.
