The LM760 is a high-performance differential voltage comparator from National Semiconductor. The operating voltage range is 4.5-6.5V. It has a response time of 25ns and a differential output. It is compatible with TTL logic and can be used in high-performance analog-to-digital conversion systems, disc file and tape amplifiers, zero cross detectors.

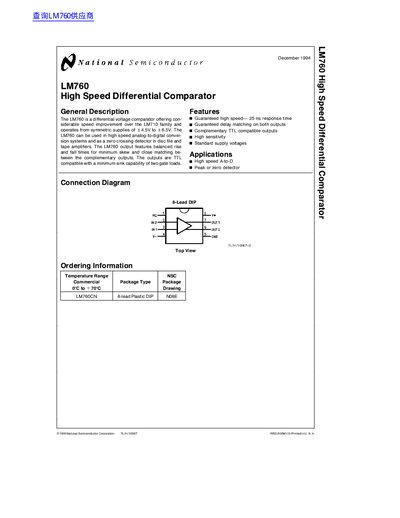

The LM760 is a high-speed differential voltage comparator designed to offer significant speed improvements over the LM710 family. It operates from symmetric supplies of ±4.5V to ±6.5V and is suitable for high-speed analog-to-digital conversion systems and as a zero-crossing detector in disc file and tape amplifiers. The device features balanced rise and fall times for minimum skew and close matching between the complementary outputs.
| Response Time | 25 ns |
|---|---|
| Input Bias Current | 60 mA |
| Input Resistance | 12 k X |
| Input Capacitance | 8.0 pF |
The guaranteed response time is 25 ns.
The LM760 has a guaranteed response time of 25 ns.
The outputs have a minimum sink capability of two gate loads.
The maximum differential input voltage is 5.0 V.
