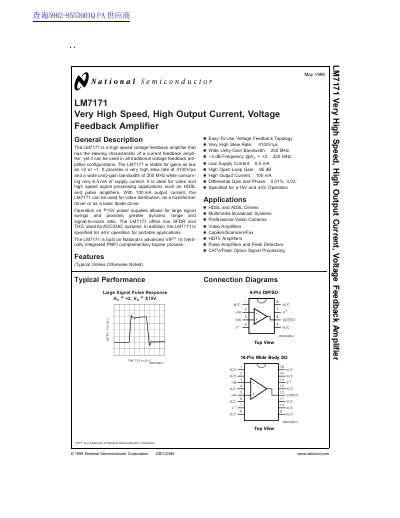

The LM7171 is a high speed, high output current, voltage feedback amplifier. It has the slewing characteristic of a current feedback amplifier; yet it can be used in all traditional voltage feedback amplifier configurations. The LM7171 is stable for gains as low as +2 or −1. It provides a very high slew rate at 4100V/µs and a wide unity-gain bandwidth of 200 MHz while consuming only 6.5 mA of supply current. It is ideal for video and high speed signal processing applications such as HDSL and pulse amplifiers. With 100 mA output current, the LM7171 can be used for video distribution, as a transformer driver or as a laser diode driver. Operation on ±15V power supplies allows for large signal swings and provides greater dynamic range and signal-to-noise ratio. The LM7171 offers low SFDR and THD, ideal for ADC/DAC systems. In addition, the LM7171 is specified for ±5V operation for portable applications. The LM7171 is built on National’s advanced VIP™ III (Verti- cally integrated PNP) complementary bipolar process.
The LM7171 is a high speed voltage feedback amplifier that combines the slewing characteristics of a current feedback amplifier with traditional voltage feedback configurations. It features a very high slew rate of 4100 V/µs, a wide unity-gain bandwidth of 200 MHz, and consumes only 6.5 mA of supply current.
The device is specified for both +15V and +5V operation, making it ideal for video distribution, HDSL drivers, pulse amplifiers, and high-speed signal processing applications such as CATV and fiber optics.
| Input Offset Voltage (Typical) | 0.2 mV |
|---|---|
| Operating Supply Voltage Range | +5V to +15V |
Yes, it is specified for both +15V and +5V operation.
The device can operate with a supply voltage up to 36V.
It consumes only 6.5 mA of supply current when operating on +15V.
The amplifier provides an output current of 100 mA.
