The NE/SA/SE5512 is a dual-channel high-performance operational amplifier with low input bias current, low input voltage bias, low input voltage noise, high voltage gain and large output drive capability.

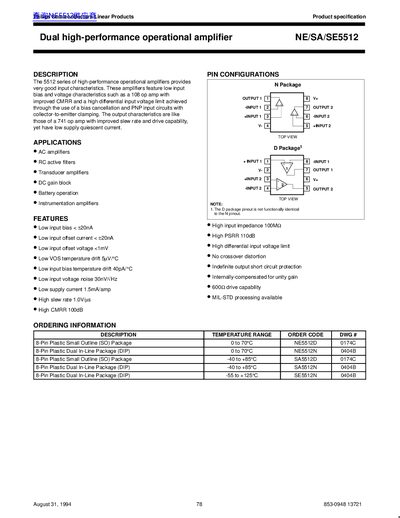

This document is a product specification datasheet for the Philips NE/SA/SE5512 series of dual high-performance operational amplifiers. The device features low input bias current (< 20nA), low input offset voltage (< 1mV), and high common-mode rejection ratio (CMRR) up to 100dB.
| Input offset voltage (Max) | < 1 mV |
|---|---|
| Supply current per amp | 1.5 mA |
| Slew rate (Typ) | 1 V/us |
| Common-mode rejection ratio (Max) | 100 dB |
| Input resistance differential | 100 MΩ |
An N package has a maximum power dissipation of 1212 mW when the ambient temperature is 25°C.
The NE5512 operates from 0 to +70 °C, while the SA5512 and SE5512 operate from -40 to +85 °C and -55 to +125 °C respectively.
