The 74F133 is a 13-input NAND gate with a typical propagation delay of 4.0ns and a typical supply current of 2.0mA.

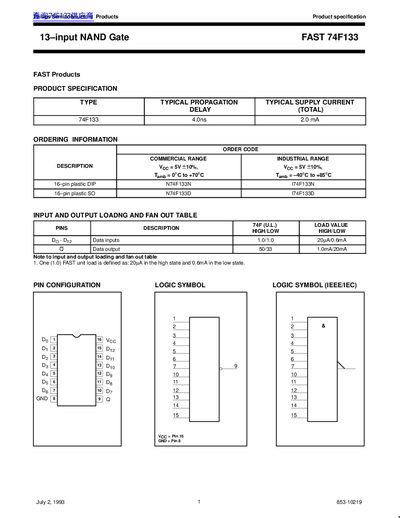

This document is a product specification for the FAST 74F133 13-input NAND Gate. It provides details on ordering information, input and output loading, pin configuration, logic diagrams, function tables, and absolute maximum ratings. The device is available in commercial and industrial temperature ranges with various package options including plastic DIP and SO.
| Number of Inputs | 13 |
|---|---|
| Commercial Temperature Range | 0°C to +70°C |
| Industrial Temperature Range | -40°C to +85°C |
The output Q goes Low if any one of the inputs D0 through D12 is Low; otherwise, it remains High.
The device has thirteen data inputs labeled D0 through D12.
The maximum temperature for the industrial range is +85 °C.
