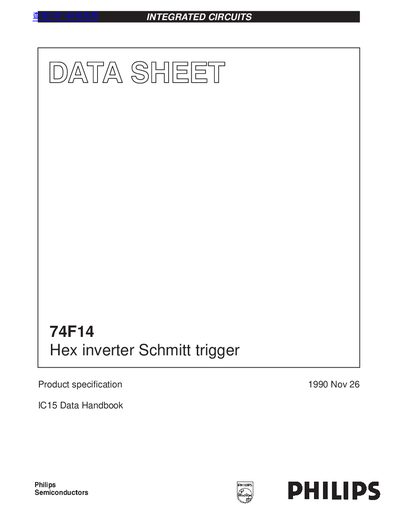

The 74F14 is a six-inverter Schmitt trigger IC produced by Philips. It accepts standard TTL input signals and provides standard TTL output levels. It can transform slowly changing input signals into sharply defined, jitter-free output signals. In addition, it has greater noise margin than conventional inverters. Each circuit contains a Schmitt trigger followed by a Darlington level shifter and a phase splitter driving a TTL totem-pole output. The Schmitt trigger uses positive feedback to effectively speed-up slow input transitions, and provide different input threshold voltages for positive-going and negative-going input threshold (typically 800mV) is determined internally by resistor ratios and is insensitive to temperature and supply voltage variations.
The Philips 74F14 is an integrated circuit containing six logic inverters that accept standard TTL input signals and provide standard TTL output levels. It features a Schmitt trigger design that transforms slowly changing input signals into sharply defined, jitter-free output signals, offering greater noise margin than conventional inverters. The device includes a Darlington level shifter and a phase splitter driving a TTL totem-pole output.
The device contains six logic inverters.
The industrial range operates from –40 °C to +85 °C.
