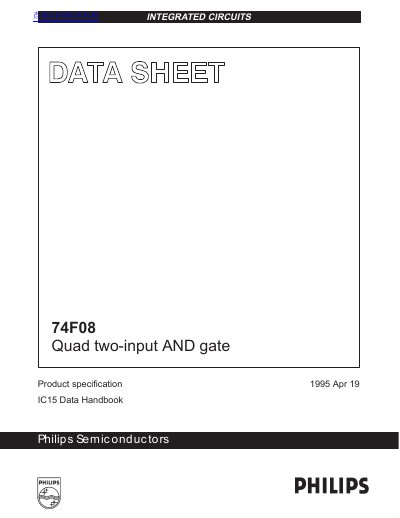

This document describes the product specifications of the 74F08 quad two-input AND gate integrated circuit from Philips Semiconductors. It includes information on pin configuration, operating temperature range, propagation delay, and supply current.
This document is a product specification datasheet for the Philips Semiconductors 74F08, a quad two-input AND gate integrated circuit. It provides technical data including logic diagrams, function tables, pin configurations, and ordering information for both commercial and industrial temperature ranges.
The datasheet details DC electrical characteristics such as propagation delay, supply current, and input/output loading capabilities under recommended operating conditions. It also includes AC electrical characteristics with specific test conditions for propagation delay measurements at various temperatures.
| Propagation Delay (Typical) | 4.1ns |
|---|---|
| Supply Current (Total, Typical) | 7.1mA |
| Operating Temperature Range (Commercial) | 0°C to +70 °C |
| Operating Temperature Range (Industrial) | -40°C to +85 °C |
| Supply Voltage (Nominal) | 5.0V |
The typical total supply current is 7.1mA.
The industrial range operates from -40°C to +85 °C.
