The 74F04 is a hex inverter chip launched by Philips. Its operating voltage is 5V and its working temperature range is -40 to +85 degrees. The pin definition is 14-pin plastic DIP.

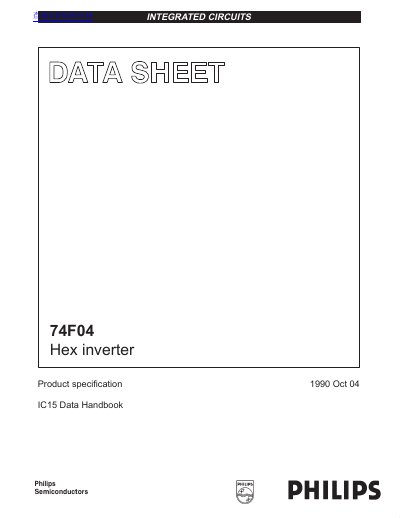

This document is a product specification for the Philips 74F04 Hex Inverter, a digital integrated circuit containing six independent inverters. It is part of the IC15 Data Handbook and was published in 1990. The datasheet provides comprehensive details on electrical characteristics, absolute maximum ratings, recommended operating conditions, and pin configurations for both commercial and industrial temperature ranges.
| Propagation Delay (Typical) | 3.5ns |
|---|---|
| Operating Temperature (Commercial) | 0 to +70 °C |
| Operating Temperature (Industrial) | -40 to +85 °C |
| Supply Voltage (Nominal) | 5.0 V |
| Short-Circuit Output Current (Max) | 150 mA |
The typical propagation delay is 3.5ns.
The commercial range is 0°C to +70°C, and the industrial range is -40°C to +85°C.
The nominal supply voltage is 5.0V with a tolerance of ±10%.
