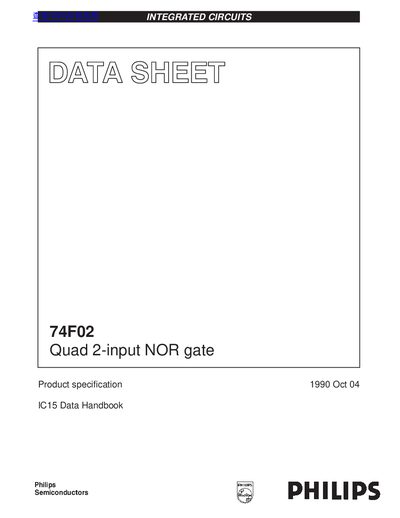

This document is the 74F02 Quad 2-input NOR gate product specification, which introduces the features, characteristics and usage methods of the product.
This document is a product specification sheet for the Philips 74F02 Quad 2-input NOR gate integrated circuit. It provides detailed information on the device's features, including industrial temperature range availability (–40 °C to +85 °C) and typical propagation delay of 3.4ns.
The datasheet outlines absolute maximum ratings, recommended operating conditions, and DC electrical characteristics such as output voltage levels and supply current. It also includes AC electrical characteristics with test circuit definitions for propagation delay measurements.
| Propagation Delay (Typical) | 3.4ns |
|---|---|
| Operating Temperature Range (Commercial) | 0 to +70 °C |
| Operating Temperature Range (Industrial) | -40 to +85 °C |
Yes, the document states that an industrial temperature range is available.
