74F00 is a quad 2-input NAND gate circuit produced by PHILIPS. Its feature is the industrial temperature range (-40°C to +85°C). The rated input high/low voltage is 20µA/0.6mA, and the rated output high/low voltage is 1.0mA/20mA.

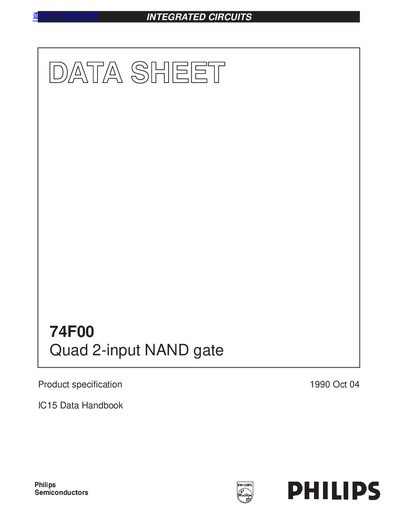

This document is a product specification for the Philips 74F00 Quad 2-input NAND gate, an integrated circuit designed for logic applications. It provides detailed information on the device's features, including industrial temperature range availability and typical propagation delay of 3.4ns.
The specification covers absolute maximum ratings, recommended operating conditions, and DC and AC electrical characteristics. It includes logic diagrams, function tables, and pin configurations for both 14-pin plastic DIP and 14-pin plastic SO packages.
| Propagation Delay (Typical) | 3.4ns |
|---|---|
| Supply Current (Typical) | 4.4mA |
| Operating Temperature Range (Industrial) | -40 °C to +85 °C |
| Supply Voltage (Nominal) | 5.0 V |
The typical propagation delay is 3.4ns.
Yes, an industrial temperature range from -40 °C to +85 °C is available.
The nominal supply voltage is 5.0V with a tolerance of ±10%.
