The BUK116-50L/S is a logic level TOPFET power MOSFET produced by Philips Semiconductors. This device is packaged in a 5-pin surface mount plastic package and features temperature and overload protection. It is intended for use in automotive systems and other applications.

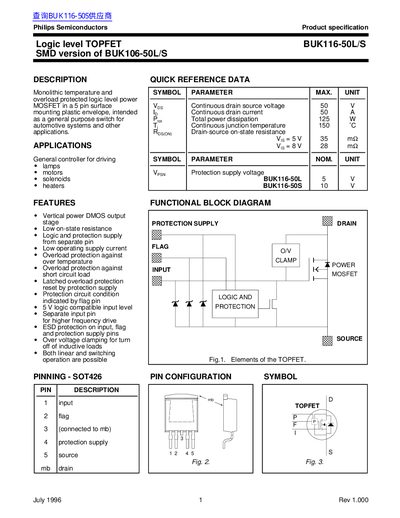

This document is a product specification for the Philips BUK116-50L/S, a logic level TOPFET available in an SMD version. It is designed as a general-purpose switch for automotive systems and other applications, featuring a 5-pin surface mounting plastic envelope. The device includes monolithic temperature and overload protection, making it suitable for driving lamps, motors, solenoids, and heaters.
| Continuous drain source voltage | 50 V |
|---|---|
| Continuous drain current | 50 A |
| Total power dissipation | 125 W |
| Drain-source on-state resistance (Vgs=8V) | 28 mΩ |
| Package type | SOT426 |
