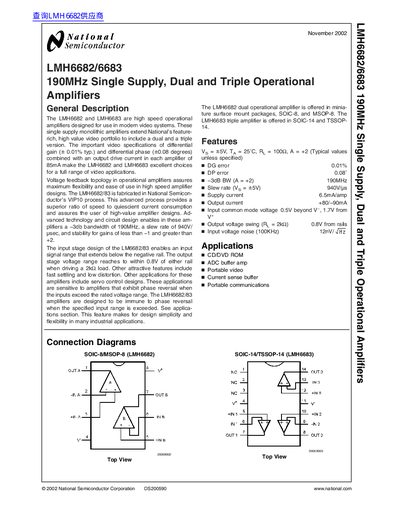

LMH6682/6683 is a high performance single supply op amp from National Semiconductor, with a bandwidth of 190MHz, a slew rate of 940V/µsec, and an accuracy of ±0.01%.
The LMH6682 and LMH6683 are high speed operational amplifiers designed for use in modern video systems. These single supply monolithic amplifiers extend National's feature-rich, high value video portfolio to include a dual and a triple version. The LMH6682 dual operational amplifier is offered in miniature surface mount packages, SOIC-8, and MSOP-8. The LMH6683 triple amplifier is offered in SOIC-14 and TSSOP-14.
| -3dB Bandwidth (A = +2) | 190 MHz |
|---|---|
| Slew Rate (Vg = +5V) | 940V/ps |
| Supply current | 6.5mA/amp |
| Output current | +480/-90mA |
| Differential Gain Error | 0.01% |
| Differential Phase Error | 0.08° |
The LMH6682 dual operational amplifier is offered in SOIC-8 and MSOP-8 packages.
The LMH6683 triple amplifier is offered in SOIC-14 and TSSOP-14 packages.
The typical supply current is 6.5mA per amplifier.
