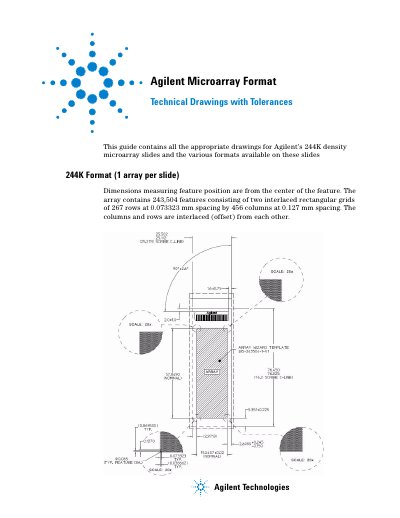

This document contains technical drawings of Agilent Technologies' microarray formats, including 244K density microarray slides and the various formats available on these slides. The different formats of microarray slides have different features and characteristics.
This document provides technical drawings with tolerances for various Agilent microarray slide formats. It details the physical dimensions and feature arrangements for slides containing single or multiple arrays.
The guide covers four specific configurations: the 244K format (one array per slide), the 2x105K format (two arrays per slide), the 4x44K format (four arrays per slide), and the 8x15K format (eight arrays per slide). Each section includes a template for the Array Wizard software.
| Total Features (244K) | 243,504 features |
|---|---|
| Rows (244K) | 267 rows at 0.073323 mm spacing |
| Columns (244K) | 456 columns at 0.127 mm spacing |
| Total Features (2x105K) | 105,072 features |
| Rows (2x105K) | 264 rows at 0.073323 mm spacing |
| Columns (2x105K) | 199 columns at 0.127 mm spacing |
| Total Features (4x44K) | 45,220 features |
| Rows (4x44K) | 266 rows at 0.073323 mm spacing |
| Columns (4x44K) | 85 columns at 0.127 mm spacing |
| Total Features (8x15K) | 15,744 features |
The 8x15K format contains eight arrays per slide.
The 244K format array contains 243,504 features.
The rows in the 244K format have a spacing of 0.073323 mm.
The 8x15K format includes 8 arrays per slide.
