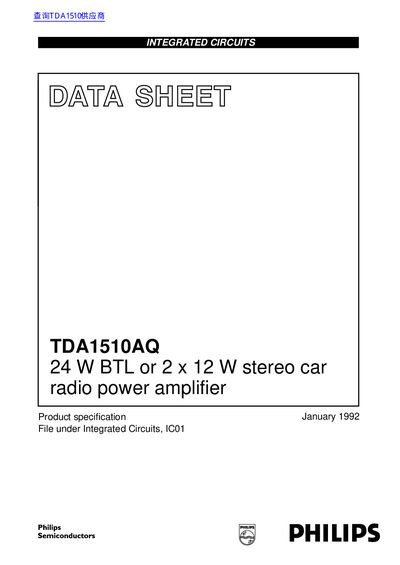

This data sheet introduces TDA1510AQ, a class-B integrated output amplifier encapsulated in a 13-lead single in-line (SIL) plastic power package. Developed primarily for car radio application, the device can also be used to drive low impedance loads (down to 1.6 Ω).
The Philips TDA1510AQ is a class-B integrated output amplifier designed primarily for car radio applications. It is encapsulated in a 13-lead single in-line (SIL) plastic power package and can deliver 24 W into a 4 Ω Bridge Tied Load (BTL) or 2 x 12 W into 2 Ω in stereo mode with a 14.4 V supply voltage. The device features load dump protection, thermal protection, and AC short-circuit safety to ground.
| Output Power (BTL) | 24 W |
|---|---|
| Output Power (Stereo) | 2 x 12 W |
| Supply Voltage Range | 6.0 V to 18.0 V |
| Quiescent Current | 75 mA to 120 mA |
| Package Type | 13-lead SIL plastic power package |
| Storage Temperature | -65 to +150 °C |
The maximum operating supply voltage is 18.0 V.
The typical closed loop voltage gain is 40.0 dB.
Yes, it has load dump protection up to 45.0 V.
