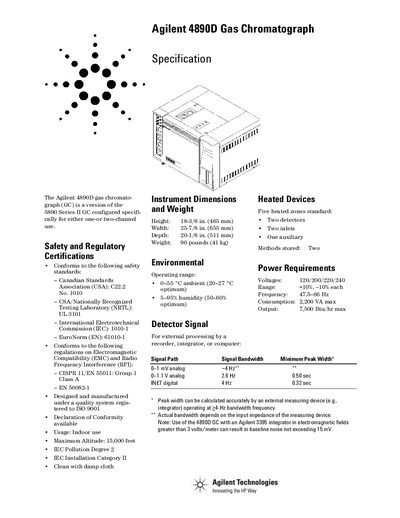

Agilent 4890D Gas Chromatograph Specification
The Agilent 4890D Gas Chromatograph (GC) is a version of the 5890 Series II GC configured specifically for one- or two-channel use. It is designed and manufactured under a quality system registered to ISO 9001 and conforms to various international safety standards including CSA, UL, and IEC. The instrument is intended for indoor use with a maximum altitude of 15,000 feet.
| Heated Zones | Five heated zones standard |
|---|---|
| Detectors | Two detectors |
| Inlets | Two inlets |
| Weight | 90 pounds (41 kg) |
| Operating Temperature Range | +0-55 °C ambient |
| Relative Humidity Range | 20-27 % |
| Output | 7,500 Btu/hr max |
| Column Oven Operating Range | 4 °C above ambient to 450 °C |
| Oven Accuracy | +1% (°K) |
It conforms to CSA C22.2 No. 1010, UL 3101, IEC 1010-1, and EN 61010-1.
The maximum altitude is 15,000 feet.
The minimum detectable level is <0.04 pg/sec lindane.
The accuracy is +1% (°K) from 4 °C above ambient to 450 °C.
