TDA0161 is a monolithic integrated circuit designed by Texas Instruments for metallic body detection by detecting the variations in high frequency eddy current losses. With an external tuned circuit they act as oscillators. Output signal level is altered by an approaching metallic object. Output signal is determined by supply current changes. Independent of supply voltage, this cur rent is high or low according to the presence or the absence of a close metallic object.

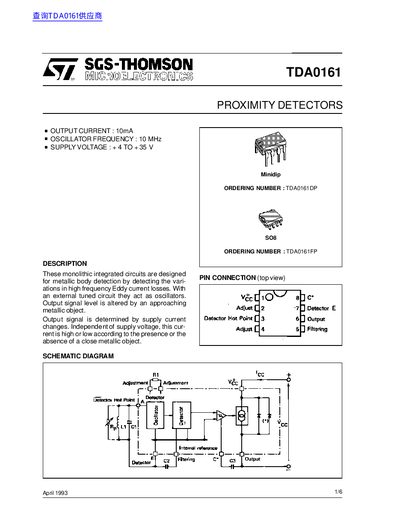

This document is a technical datasheet for the SGS-THOMSON Microelectronics TDA0161 monolithic integrated circuit. The device is designed for metallic body detection by detecting variations in high-frequency Eddy current losses when used with an external tuned circuit.
The datasheet provides absolute maximum ratings, electrical characteristics including supply voltage and oscillator frequency, typical application circuits, coil specifications, and mechanical dimensions for both Minidip and SO8 packages.
| Output Current | 10mA |
|---|---|
| Oscillator Frequency | 10 MHz |
| Supply Voltage Range | +4 to +35 V |
| Maximum Supply Voltage | 35 V |
| Junction Temperature Max | +150 °C |
| Total Power Dissipation | < 150mW |
The device operates with a supply voltage between +4V and +35V.
The oscillator tuning frequency is 10 MHz.
