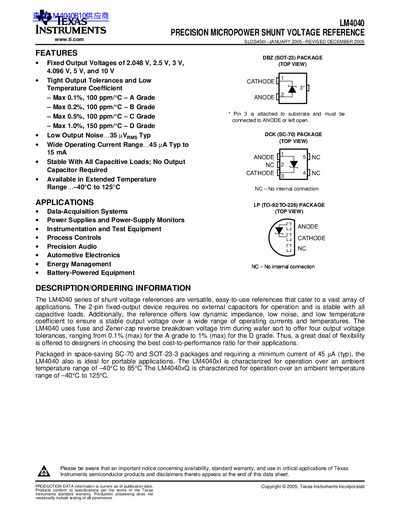

The LM4040 series is a versatile and easy-to-use voltage reference that caters to a vast array of applications. It features fixed output voltages, requires no external resistors or capacitors for operation, and is stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low noise, and a wide operating current range.
The LM4040 series consists of versatile, easy-to-use shunt voltage references designed for a wide array of applications including data acquisition systems, power supplies, and instrumentation. These devices feature fixed output voltages ranging from 2.048 V to 10 V with tight output tolerances (up to 0.1% max) and low temperature coefficients.
| Max Output Tolerance (Grade A) | 0.1% |
|---|---|
| Operating Temperature Range (Extended) | -40°C to 125°C |
The device requires a minimum cathode current of 45 pA (typ).
