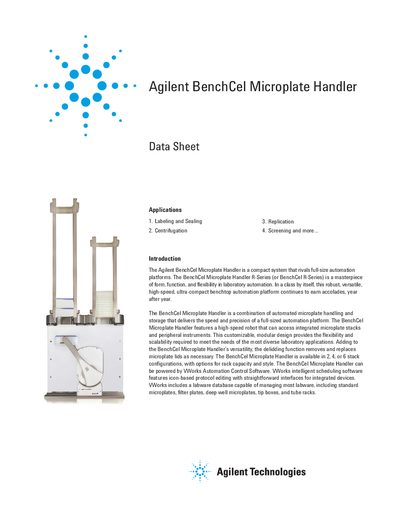

The Agilent BenchCel Microplate Handler is a compact system that rivals full-size automation platforms. The BenchCel Microplate Handler R-Series (or BenchCel R-Series) is a masterpiece of form, function, and flexibility in laboratory automation. In a class by itself, this robust, versatile, high-speed, ultra-compact benchtop automation platform continues to earn accolades, year after year. The BenchCel Microplate Handler is a combination of automated microplate handling and storage that delivers the speed and precision of a full-sized automation platform. The BenchCel Microplate Handler features a high-speed robot that can access integrated microplate stacks and peripheral instruments. This customizable, modular design provides the flexibility and scalability required to meet the needs of the most diverse laboratory applications. Adding to the BenchCel Microplate Handler’s versatility, the delidding function removes and replaces microplate lids as necessary. The BenchCel Microplate Handler is available in 2, 4, or 6 stack configurations, with options for rack capacity and style. The BenchCel Microplate Handler can be powered by VWorks Automation Control Software. VWorks intelligent scheduling software features icon-based protocol editing with straightforward interfaces for integrated devices. VWorks includes a labware database capable of managing most labware, including standard microplates, filter plates, deep well microplates.
The Agilent BenchCel Microplate Handler is a compact, high-speed benchtop automation platform designed for laboratory applications. It features a high-speed robot capable of accessing integrated microplate stacks and peripheral instruments, offering 2, 4, or 6 stack configurations for a maximum capacity of 360 standard microplates. The system is powered by VWorks Automation Control Software and can be configured as a standalone device (G5410A) or an integrated workstation (G5400A).
| Transfer time | 8 seconds |
|---|---|
| Maximum stack capacity | 360 standard microplates |
| Operating Temperature | 4-40 °C |
| Operating Voltage (US) | 100-240 ~, 50/60 Hz |
| Controller OS | Windows XP or Vista |
| Interface | 10BaseT Ethernet port, RS-232 serial port |
| Width (2 Stack) | 43.0 cm [17.0 in] |
| Weight (6 Stack) | 32.7 kg [72 lbs] |
The system supports 2, 4, or 6 stack configurations for a maximum of 360 standard microplates.
The system is powered by VWorks Automation Control Software.
The standalone device is the G5410A, and the integrated workstation is the G5400A.
