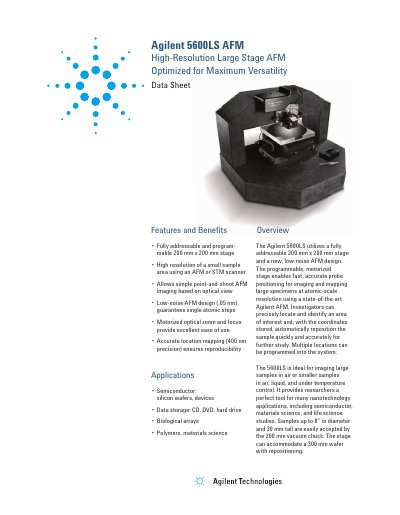

The Agilent 5600LS AFM is a high-resolution large stage AFM optimized for maximum versatility. It features a fully addressable and programmable 200 mm x 200 mm stage, allowing high resolution imaging of small sample areas using an AFM or STM scanner. The AFM design ensures low noise (.05 nm) and guarantees single atomic steps. Motorized optical zoom and focus provide excellent ease of use. Accurate location mapping (400 nm precision) ensures reproducibility. The 5600LS is ideal for imaging large samples in air or smaller samples in air, liquid, and under temperature control. It is a perfect tool for nanotechnology applications in semiconductor, materials science, and life science studies.
The Agilent 5600LS is a high-resolution atomic force microscope (AFM) designed for maximum versatility, featuring a fully addressable and programmable 200 mm x 200 mm stage. It supports imaging large specimens at atomic-scale resolution in air, liquid, and under temperature control. The system includes a low-noise AFM design with 0.05 nm precision, motorized optical zoom and focus, and accurate location mapping with 400 nm precision.
| Stage Size | 200 mm x 200 mm |
|---|---|
| Vertical Noise (Low-noise design) | 0.05 nm |
| Location Mapping Precision | 400 nm |
| Sample Diameter | 8 inches |
| Sample Height | 30 mm |
| Large Scanner Range | 90 µm x 90 µm |
| Small Scanner Range | 9 µm x 9 µm |
| Temperature Control Range | 4°C to 250°C |
| Temperature Stability | ±0.1°C or ±0.025°C |
| Power Input | 100 – 120 V AC or 220 – 240 V AC |
The 5600LS is compatible with contact mode, acoustic AC mode, phase imaging, STM, LFM, EFM, MFM, force modulation, current sensing, and Agilent's MAC Mode III.
Yes, the 5600LS is ideal for imaging large samples in air or smaller samples in air, liquid, and under temperature control.
The large scanner can scan areas up to 90 µm x 90 µm.
