The External Experiment Module is an optical table that can be attached to any Agilent FTIR spectrometer for custom experiments, such as reflection and polarization modulation, grazing angle of thin films with photoelastic modulator, do-it-yourself accessories, and analysis of large samples. It features a large base plate, standard optical 1/4 x 20 drilled and tapped holes, magnetic surface, clear plastic purge cover, large orifices, and platforms for detector and sampling accessories.

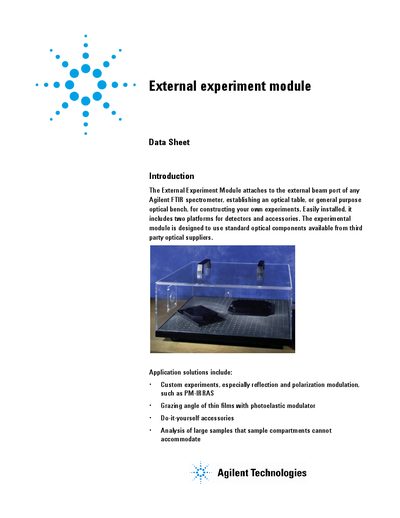

The Agilent External Experiment Module attaches to the external beam port of compatible Agilent FTIR spectrometers, establishing an optical table or general purpose optical bench. It is designed to allow users to construct custom experiments using standard optical components available from third-party suppliers.
Key features include a large base plate measuring 60 cm x 60 cm with standard 1/4 x 20 drilled and tapped holes on one-inch centers, enabling the attachment of off-the-shelf optical components. The module also features a magnetic surface to accommodate standard or magnetic optical mounts and includes platforms for detector and sampling accessories.
| Base plate dimensions | 60 cm x 60 cm (2 ft x 2 ft) |
|---|---|
| Hole specification | Standard optical 1/4 x 20 drilled and tapped holes on one inch centers |
| Compatible spectrometers | Cary 660/670/680 FTIR and Excalibur series/FTS7000 |
It attaches to an external beam port of an Agilent FTIR spectrometer to establish an optical table for constructing custom experiments.
The large base plate measures 60 cm x 60 cm, which is equivalent to 2 ft x 2 ft.
The module is compatible with Cary 660/670/680 FTIR and Excalibur series/FTS7000 spectrometers.
