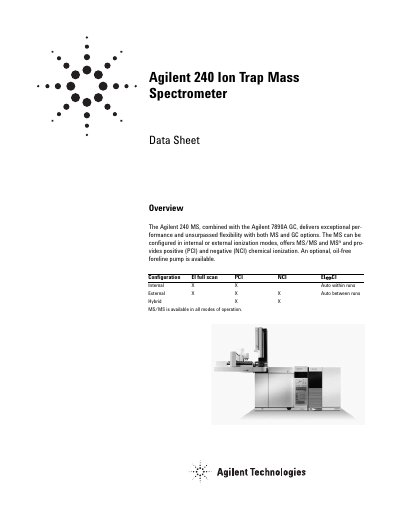

Agilent 240 Ion Trap Mass Spectrometer
The Agilent 240 MS is an ion trap mass spectrometer designed to deliver exceptional performance when combined with the Agilent 7890A GC. It supports both internal and external ionization modes, offering MS/MS capabilities and positive or negative chemical ionization options.
Key specifications include a mass range of 10-1000 Da with unit mass resolution and scan rates up to 10,000 Da/s. The instrument features an off-axis detector design and includes standard turbomolecular pumps with optional oil-free foreline configurations.
| Mass range | 10-1000 Da in 0.1 Da steps |
|---|---|
| Resolution | Unit mass resolution over the entire mass range |
| Scan rate | 5000 or 10000 Da/s |
| Mass axis stability | +0.1 Da over 72 hr |
| Pumping speed (Standard Foreline Pump) | greater than 95 L/min |
| Power Requirements (MS) | 90-130 Vac, 60 Hz + 3 Hz, 12 A |
| Weight (MS) | 42 Kg / 93 lbs |
The mass range is 10-1000 Da in 0.1 Da steps.
Yes, MS/MS is available in all modes of operation.
