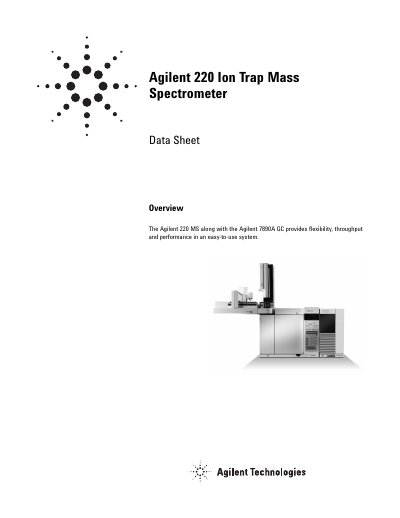

The Agilent 220 Ion Trap Mass Spectrometer, a combination of the Agilent 220 MS and the Agilent 7890A GC, provides flexibility, throughput and performance in an easy-to-use system.
The Agilent 220 MS is designed to provide flexibility, throughput, and performance when used with the Agilent 7890A GC. It features a dual filament assembly and a turbomolecular pump for vacuum generation. The system supports various ionization modes, including EI, CI, and optional MS/MS capabilities.
Key specifications include a mass range of 10 to 650 Da with unit mass resolution and a scan rate of 5600 Da/s. The instrument operates on 100-130 Vac or 200-260 Vac power and requires an environmental temperature between 15 °C and 30 °C. It comes with MS Workstation software for data acquisition and review.
| Mass range | 10 to 650 Da |
|---|---|
| Resolution | Unit mass resolution |
| Scan rate | 5600 Da/s |
| Maximum ionization time | 25 ms |
| Transfer line temperature | maximum 350 °C |
| Analyzer temperature | maximum 250 °C |
| Power Requirements (100-130 Vac) | 60 Hz + 3 Hz, 12 A, 1.5 kW |
| Weight | 23 Kg |
The mass range is 10 to 650 Da.
The scan rate is 5600 Da/s.
MS Workstation (MSWS) is used for acquisition, automation, and data review.
