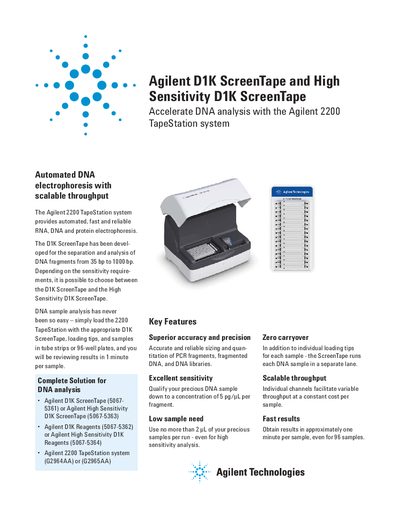

The Agilent D1K ScreenTape and High Sensitivity D1K ScreenTape accelerate DNA analysis with the Agilent 2200 TapeStation system. The system provides automated, fast and reliable RNA, DNA and protein electrophoresis. The D1K ScreenTape has been developed for the separation and analysis of DNA fragments from 35 bp to 1000 bp. Depending on the sensitivity requirements, it is possible to choose between the D1K ScreenTape and the High Sensitivity D1K ScreenTape. DNA sample analysis has never been so easy - simply load the 2200 TapeStation with the appropriate D1K ScreenTape, loading tips, and samples in tube strips or 96-well plates, and you will be reviewing results in 1 minute per sample.
This document provides an overview of the Agilent D1K ScreenTape and High Sensitivity D1K ScreenTape consumables designed for use with the Agilent 2200 TapeStation system. These tapes enable automated, fast, and reliable RNA, DNA, and protein electrophoresis, specifically targeting the separation and analysis of DNA fragments ranging from 35 bp to 1000 bp.
| Sizing range (D1K ScreenTape) | 35 — 1,000 bp |
|---|---|
| Resolution (35 — 300 bp) | 15% |
| Sensitivity | 0.05 ng/pL (High Sensitivity) / 5 pg/L (D1K) |
| Analysis time (16 samples) | < 20 minutes |
The sizing range covers DNA fragments from 35 bp to 1,000 bp.
The tape is designed for separating and analyzing DNA fragments ranging from 35 bp to 1000 bp.
You need to use no more than 2 uL of your precious samples per run.
You will be reviewing results in approximately one minute per sample, even for 96 samples.
