The LinkMaster™ UTP/STP Tester is a test device used with UTP (Unshielded Twisted Pair) and STP (Shielded Twisted Pair) wiring. It checks the continuity and configuration of wiring with unshielded and shielded modular plugs, and tests for open circuits, shorts, miswires, reversals, and split pairs. The SHIELD detection feature tests a cable's shield integrity. The main unit and one remote allow for one person testing of T568A, T568B, 10Base-T, and Token Ring. The remote has a wiring chart identifying T568A and T568B wiring configurations. The DEBUG feature quickly identifies which cable pairs have a specific wiring fault. A low battery LED indicates when a battery replacement is necessary.

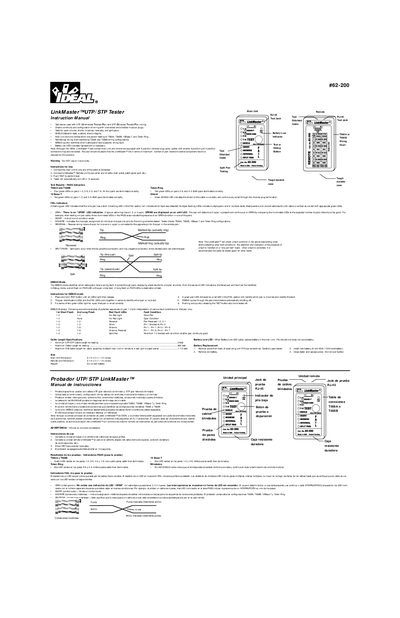

The Agilent 62-200 LinkMaster is a handheld device used to test UTP (Unshielded Twisted Pair) and STP (Shielded Twisted Pair) cables. It supports various wiring standards including T568A, T568B, 10Base-T, and Token Ring configurations. The device features both PASS and FAIL indicators to quickly identify cable assembly issues.
The tester will automatically turn off in 12 seconds after the push button is pressed.
A flashing pair LED indicates that the wire pair has a fault, and multiple flashing LEDs indicate multiple faults.
The minimum UTP/STP cable length for testing is 10 feet.
